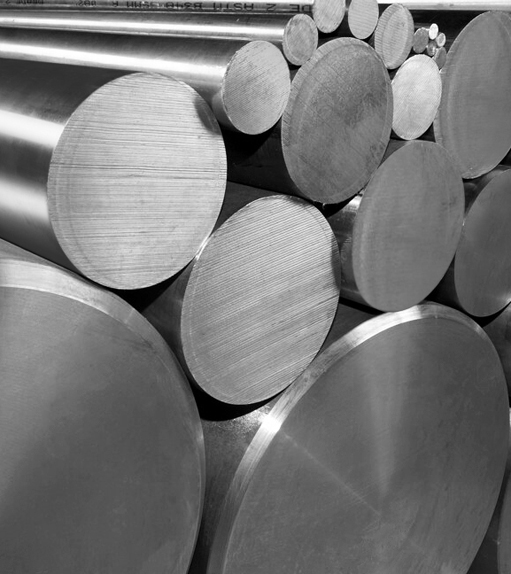

Titanium Alloy Grade 36 Ti45-Nb Bar and Rod

1.Titanium Alloy Grade 36 Ti45-Nb is high content Nb titanium alloy.
2.Size: Φ7mm~Φ230mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Standard Specification: ASTM B348, ASME SB348, ISO, DINAWS A5.16 (ERTi-36);

Standard	Werkstoff No.	UNS
Titanium Alloy Grade 36 Ti45-Nb	~	R58450

Technical Data Sheet

Chemical Composition
Weight %	Ti	Nb	C	Fe	N	O	H
Titanium Alloy Grade 36 Ti45-Nb	Balance	42~47	0.04	0.03	0.03	0.16	0.0035

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade9 Ti-3Al-2.5V

450

60~95

410~655
