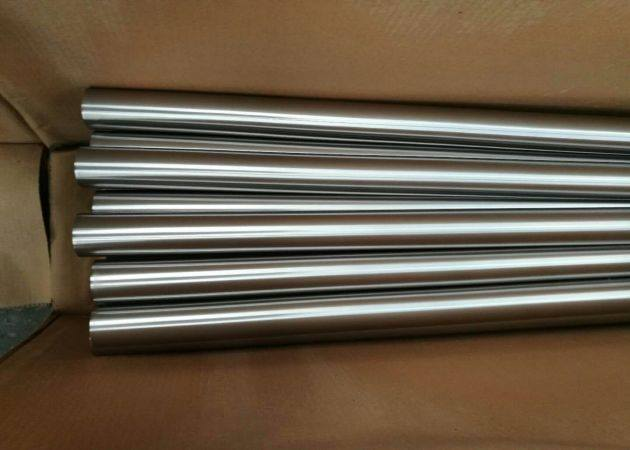

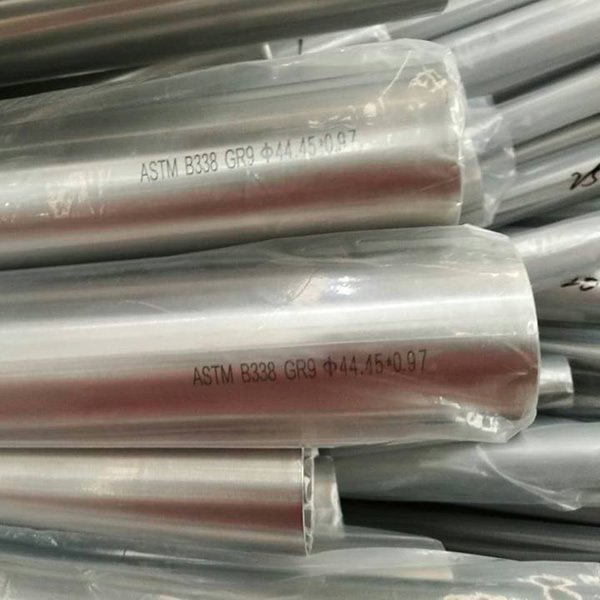

Titanium Bicycle Tubing and Pipe for exhaust and Frame

Titanium seamless and welded tubing and pipes are used for all kinds of Bicycle and frame;
Size: Outer Diameter: Φ2mm~Φ120mm;Wall Thickness 0.1~3mm etc.;
Titanium Grade: Titanium Grade2, Titanium Grade5, Titanium Grade9 etc;
Standard: ASTM B338, ASTMB861, ASTM B862, AMS 4944, AMS 4945;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

GOOLEE can provideTitanium Bicycle Tubing and Pipe for exhaust and Frame

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade1	3.7025	R50250
Commercial Pure Titanium Grade2	3.7035	R50400
Titanium Alloy Grade9	3.7195	R56320

Technical Data Sheet

Chemical Composition

Weight %

Commercial Pure Titanium Grade1

Balance

0.08

0.2

0.03

0.15

0.015

Commercial Pure Titanium Grade2

Balance

0.08

0.3

0.03

0.25

0.015

Titanium Alloy Grade9

Balance

2.5~3.5

2~3

0.08

0.25

0.03

0.15

0.015

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%	Reduction of Area Min %
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%	Reduction of Area Min %
Commercial Pure Titanium Grade1	35	240	20	138	24	30
Commercial Pure Titanium Grade2	50	345	40	275	20	30
Titanium Alloy Grade9	50	345	40	275	20	30

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials) Tubes and Pipes

Ti-6Al-4V ELI Alloy is the most widely used titanium alloy of the alpha-plus beta class, and is also the most common of all titanium alloys. This modification incorporates extra low int

Titanium Alloy Grade5 Ti-6Al-4V Tube and Pipes

Titanium Alloy Grade5 Ti-6Al-4V Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class,and is also the most common of all titanium alloys. The alloy is castable and is&nbs

Commercial Pure Titanium Grade 3 Tube and Pipes

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength,moderate ductility, and ASME Code design allow ables. The material is readilyweld able. This material is very corros

Commercial Pure Titanium Grade 2 Tube and Pipes

Titanium Alloy Grade 2 is “unalloyed” titanium offering an excellent balanceof strength and ductility. The material has good toughness and is readilyweldable. This material is very corrosion resistant
