1.Molybdenum and Molybdenum alloys Tubes and Pipes

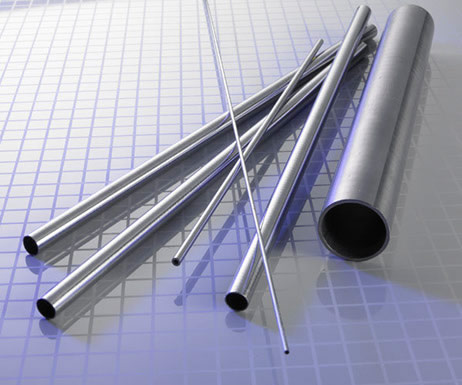

Product name: Molybdenum Tube/Pipe
Standard: ASTM B386
Material: Mo >99.95%
Density: >10.2g/cc

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Molybdenum tube (pipe) can be used at service temperature up to 1,800 degrees.

Used in components of electron tube, heaters of high-temperature furnaces, thermocouple retainers.

Specification:

We can supply seamless or welding molybdenum tube and pipe at very competitive prices of good quality. Below are most of the standard sizes. If you do not see the size of molybdenum tube that you require, please feel free to contact us.

Name	Outer Diameter (mm)		Wall Thickness (mm)		Length (mm)
Molybdenum Tube/Pipe	Size	Tolerance	Size	Tolerance	Size	Tolerance
	<100	±1.0	<1	±0.1	<100~150	±2.0
	100~200	±2.0	1~3	±0.25	150~350	±3.0
	200~300	±3.0	3~10	±0.5	350~650	±4.0
	300~400	±5.0	10~20	±1.0	650 ~ 2000	±5.0
	>400	±7.0	20 ~ 30 max	±1.0	2000 ~ 6000 max	±5.0

Molybdenum Crucible

Description: We can provide two kinds of molybdenum crucibles. One is sintering product, its density is among 9.8 ~ 10g/cc; the other one is forging product, its density can reach 10.2g/cc. Applicati

Molybdenum Boat

Description: Molybdenum boats are made after processing molybdenum plates with cutting, folding, riveting and welding. The boat shapes can be molded according to customers' requirements, including ro

Molybdenum and Molybdenum alloys wire

Application: Molybdenum wire can withstand high temperature and corrosion, it is used as heating materials of high-temperature resistance furnace, heating elements, automotive, aerospace, wire c

Molybdenum and Molybdenum alloys Sheet and Plate
